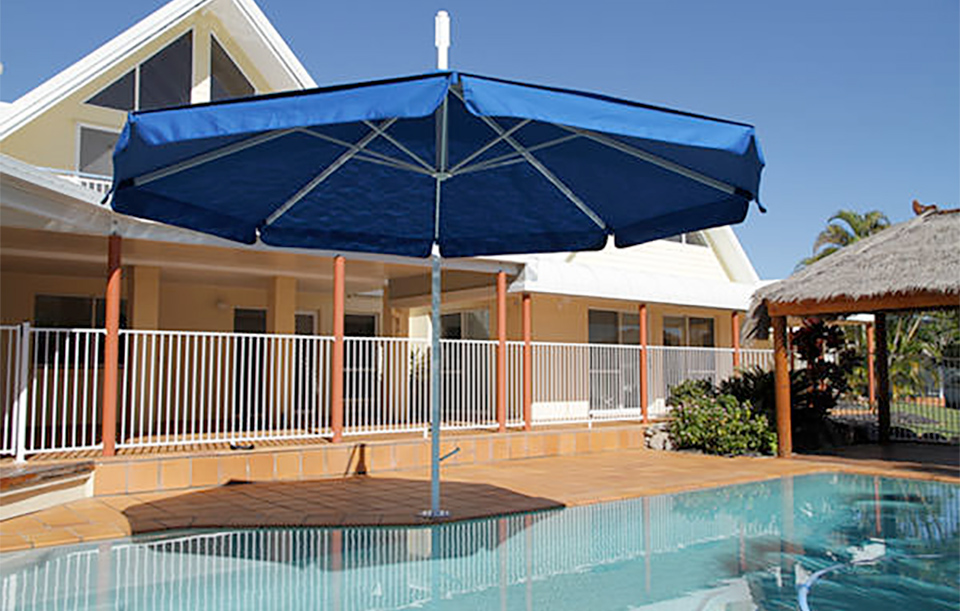

Master Shade
The Octagonal or Square shaped canopy is the perfect umbrella for over your pool or patio. The Mastershade revolves 360 degrees ‘locking off’ at any position. The frame is made of structural aluminium powder coated and is available in a range of colours. All fittings are made from quality stainless steel and all our bases are hot dipped galvanized. We make our canopies with 100% acrylic canvas, dope-dyed to give a longer lasting colour.
Colour Range
Frame Dulux Powder Coating Range.
Fabric
Docril Acrylic Fabric Range.
FEATURES
- Structural Aluminium
- All Stainless steel fittings
- Wind up operation
- Frame – your choice of colours
- Hot dipped galvanized base
- Fabric 100% acrylic (outdoor)
- Water resistant
- Ultra-violet protection (ANZS 43991886)
- Mildew and mould treated
- Valances straight or scalloped
- With or without Valance
- Resistance of fading
- Range of colours available
- Rotates 360°
- 3 Tilt positions
- 100% Australian made
- Optional extras:
- Protective Cover
- Tilts to post
- Powder Coated Base
PVC FABRIC – Full Ferrari Colour range
FRAME COLOURS – Any Dulux Powder Coating Colour

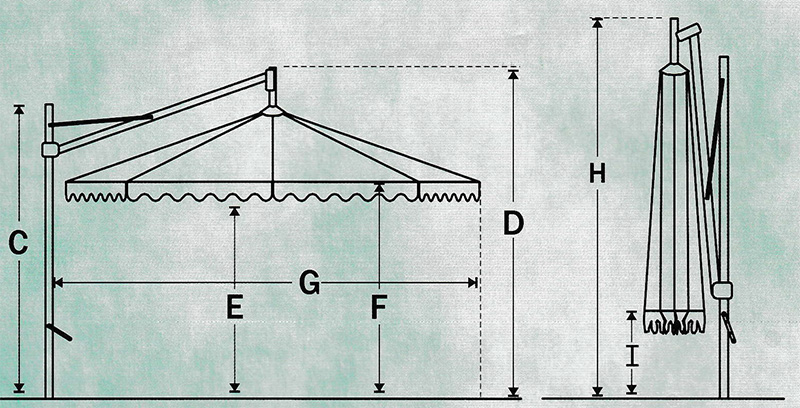

Model | C | D | E | F | G | H | I | Wind Rating |
---|---|---|---|---|---|---|---|---|
OCT 2.5m | 2700 | 2990 | 1960 | 2110 | 2720 | 2705 | 965 | 100 |
OCT 3.0m | 2700 | 3240 | 2000 | 2150 | 3700 | 2930 | 640 | 100 |
OCT 3.6m | 2700 | 3240 | 2000 | 2150 | 3700 | 2930 | 640 | 100 |
OCT 4m | 2840 | 3410 | 2140 | 2310 | 4100 | 3250 | 760 | 80 |
OCT 4.5m | 2840 | 3570 | 1940 | 2140 | 4170 | 3350 | 550 | 50 |
OCT 5m | 3000 | 3510 | 2085 | 2235 | 4670 | 3380 | 340 | 50 |
SQ 2.5m | 2700 | 3045 | 1980 | 2125 | 3050 | 2870 | 120 | 80 |
SQ 2.7m | 2700 | 3045 | 1980 | 2125 | 3050 | 2870 | 120 | 80 |
SQ 3.0m | 2700 | 3045 | 1980 | 2125 | 3050 | 2870 | 120 | 80 |
SQ 3.0mNV | 2700 | 3045 | 1980 | 2070 | 3050 | 2870 | 280 | 80 |
SQ 3.2m | 2700 | 3210 | 2010 | 2180 | 3520 | 2940 | 180 | 60 |
SQ 3.6m | 2840 | 3420 | 2200 | 2350 | 3890 | 3280 | 280 | 53 |
SQ 3.6mNV | 2840 | 3340 | 2010 | 2280 | 3710 | 3060 | 280 | 53 |
Approximate Measurements subject to change.
